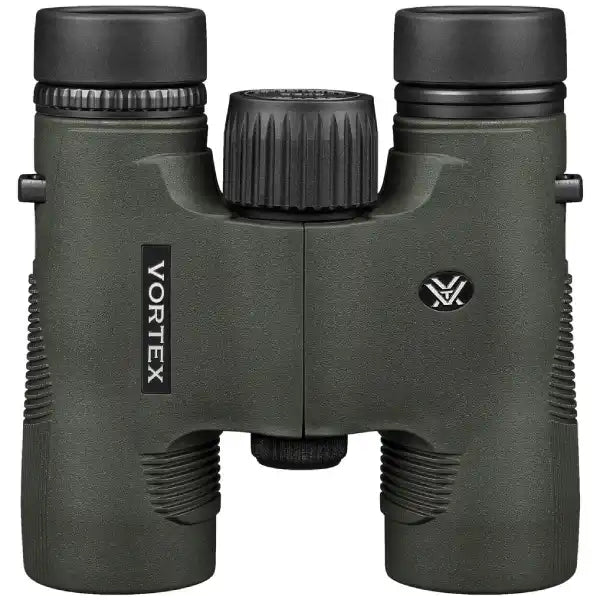

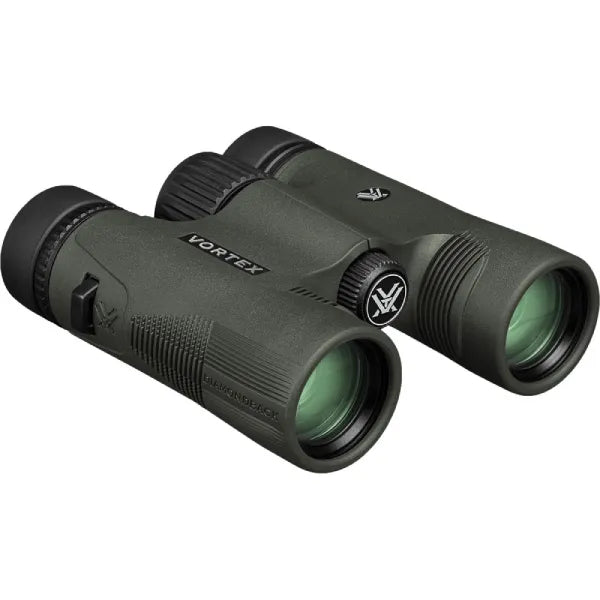

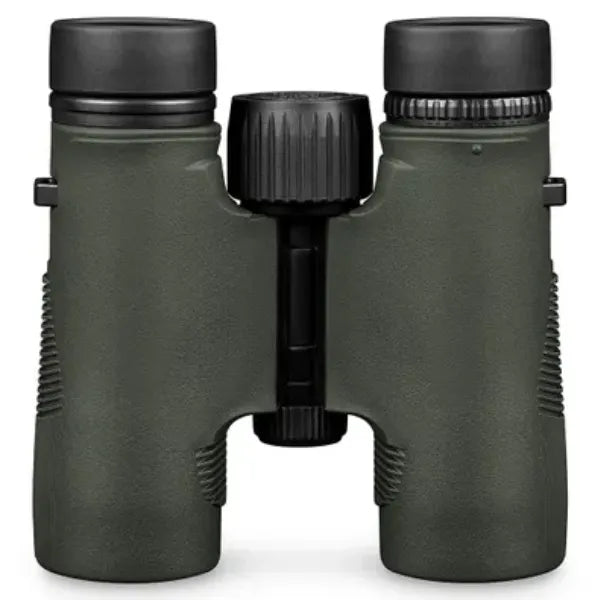

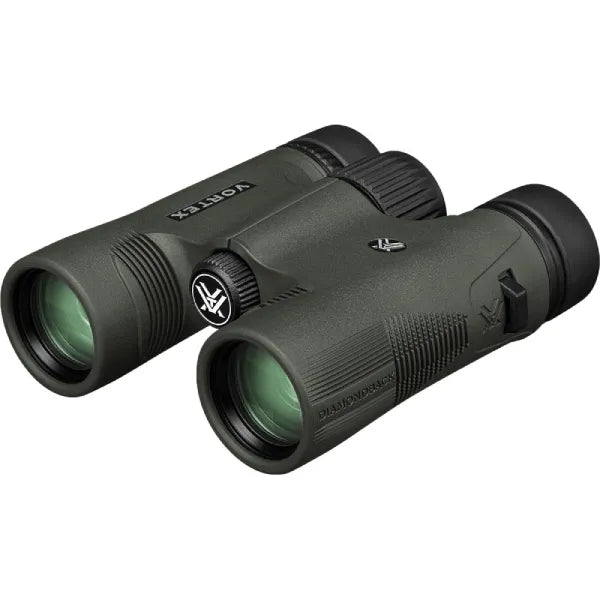

Vortex 10x28 Diamondback HD Binoculars

The Vortex 10x28 Diamondback HD Binoculars deliver crystal-clear viewing with an advanced optical system, durable magnesium alloy construction, and reliable 10x magnification for spotting distant subjects. A compact, lightweight design makes them ideal for travel, wildlife observation, sporting events, and outdoor exploration.

The Diamondback HD renders views with minimal chromatic aberration, exceptional color fidelity, edge-to-edge sharpness, and optimal light transmission through the use of high definition glass, an index-matched lens configuration, XR Plus lens coatings, and dielectric-coated, phase-correcting roof prisms. Minimum focus is a birding-friendly 1.8 meters. The lenses are protected from scratches, oil, and dust by ArmorTek exterior lens coating.

The housing is argon filled and sealed with O-rings to ensure reliable and durable protection against dust, debris, fog, and water. The binoculars are rubber armored to make them nonslip and offer durable protection. They are equipped with a large focusing knob that is easy to use even while wearing gloves. Naturally contoured to perfectly fit your hands, promoting comfort, and eliminating user fatigue, the Diamondback HD binoculars include a winning combination of features.

Optical Performance

• Roof prism design
• 10x magnification
• 28mm objective lenses
• Fully multi-coated lenses increase transmission, clarity, and brightness
• Dielectric-coated, phase-correcting roof prisms improve true color, contrast, and transmission
• 90.6m linear field of view at 1000 yards
• 1.8m close focus distance
• Exit pupil: 2.8mm
• Eye Relief: 16mm

Use and Handling

• Short-hinge bridge cuts weight and exposes more surface for handling
• Adjustable interpupillary distance: 55-72mm
• Oversized knurled center focusing wheel
• Textured diopter ring on right eyepiece
• Twist-up soft tapered rubber eyecups

Construction Details

• Protective rubber armor provides a slip-resistant grip
• O-ring sealed and argon-filled to be waterproof and resistant to internal fogging when moving through extreme temperatures and environmental conditions
• Scratch-resistant ArmorTek exterior lens coatings repel oils and corrosive materials from lenses

Vortex 10x28 Diamondback HD Binoculars
Rainguard Eyepiece Cover
Tethered Objective Lens Covers
Neck Strap
Soft Side Case Strap

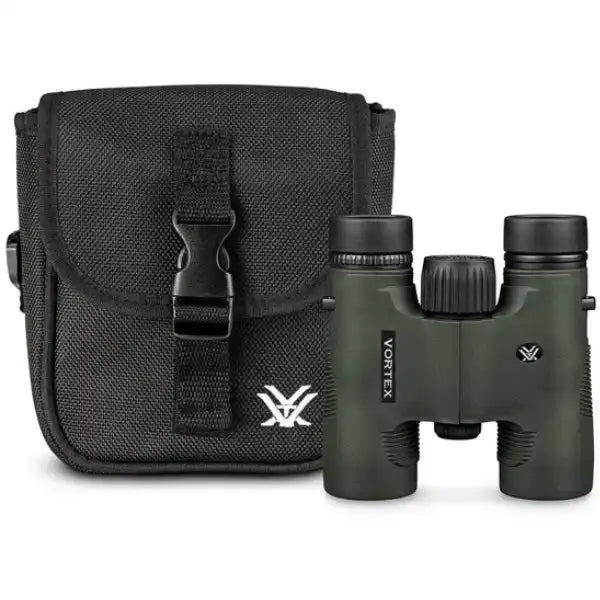

Soft Side Carry Case
Lens Cloth

Lifetime Vortex VIP Warranty
